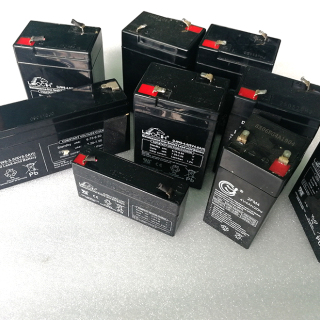

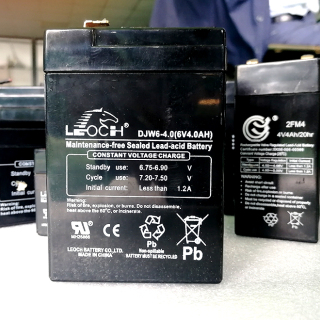

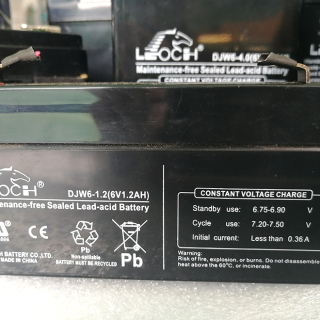

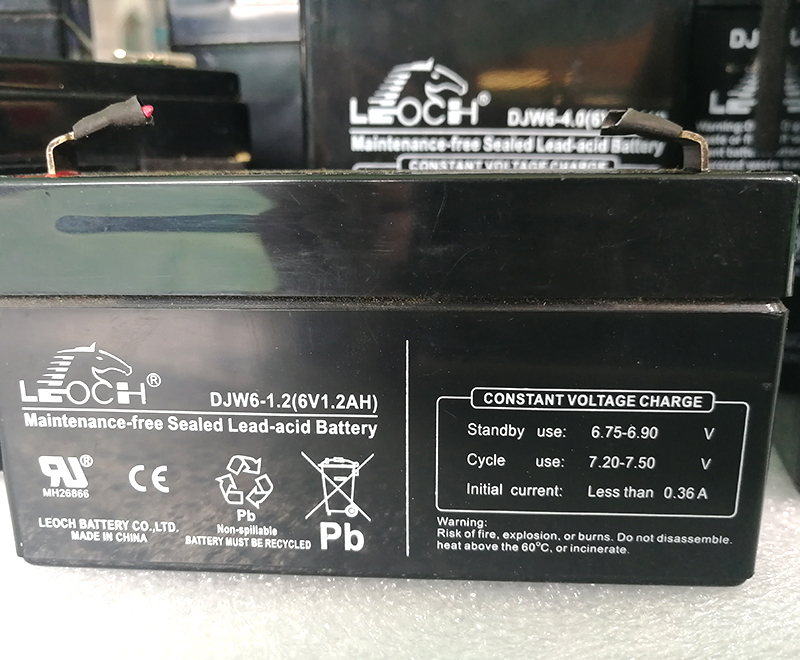

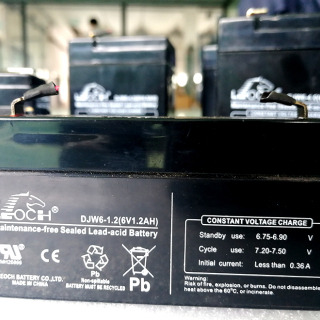

Battery

Floating voltage

At an average temperature of 25 ° C, 13.65 ± 0.15 VDC per section

Recommended larger charging current

0.2C A @ 20hr rate

Charging voltage during balanced and cyclic applications

At an average temperature of 25 ° C, 14.4 to 14.8 VDC per section

Large AC ripple (charger)

For better results, it is recommended to have a floating voltage fluctuation of 0.5% RMS or 1.5% peak to peak (P-P), with a larger allowable AC ripple floating voltage of 1.4% RMS (4% P-P) and a larger allowable AC ripple current of C/20 A RMS

Self discharge

It can be stored for 4 months in a 25 ℃ environment, and then needs to be recharged once.

 If stored at higher temperatures, the interval between replenishing electricity should be shorter

Design lifespan: 7 years (>26Ah);

UL certified components

                         5 years (≤ 26Ah)

Flame retardant one-way exhaust valve ensures battery safety and long lifespan

It can be placed and used in a vertical, side, or end orientation

The adsorption glass fiber cotton technology achieves a gas composite efficiency of up to 99%, making the electrolyte maintenance free

Compliant with the special regulations A67 of the Air Transport Association/Civil Aviation Organization (IATA/ICAO), it can be put into operation by air

The low calcium alloy grid designed by computer greatly reduces the amount of gas generated and can be conveniently recycled for use

Can be transported on the ground as non hazardous materials (DOT-CFR 49, Parts 171-189)
