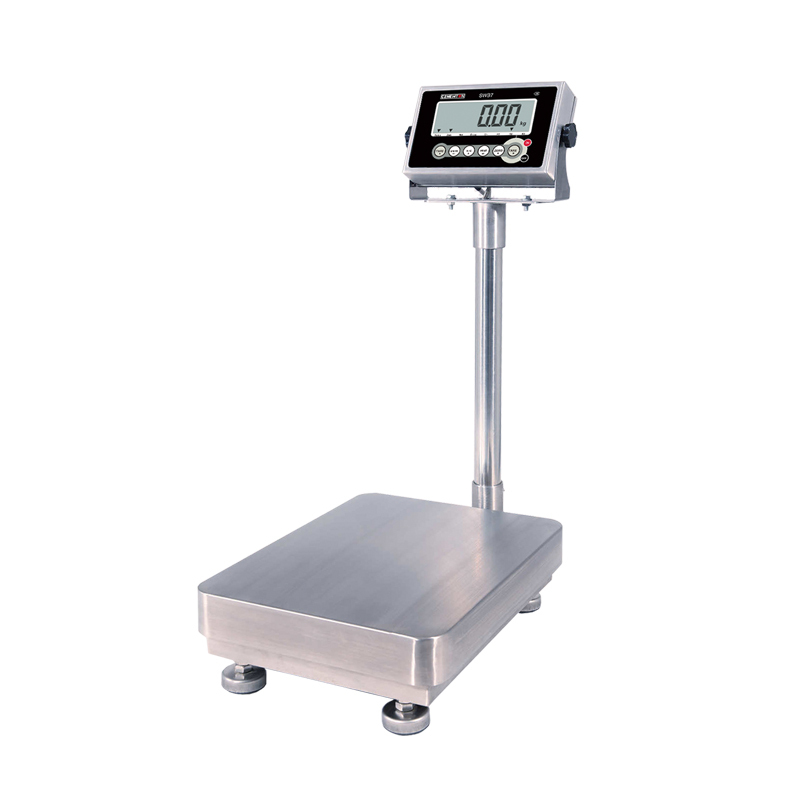

500KG IP66 Stainless Steel Indicator Platform Scale made in China
Brand: CZNEWTON
Product origin: Changzhou, Jiangsu, China
Application: Manufacturing
Model: SWB7

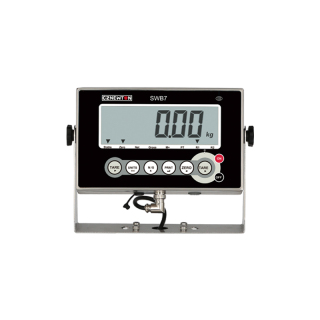

SWB7 is high precision OIML/NTEP waterproof stainless steel weighing indicator with extra-large LCD display. Platform Scale made in China, Platform Scale is NTEP approved Legal for Trade. It can work with 4 load cells with 350 ohm minimum resistance.
OIML/NTEP scale Functions
• Function keys: Tare x 2, Units, Net/Gross, Print, Zero, On, Off
• Weighing Mode, Counting Function, Checking Weight HI-OK-LO Function
• Multiple Weighing Units Available
• Power On Zero-Tracking, Auto-Calibration, Auto-Power Off mode, Digital Noise Filter, Full Tare, Accumulation Memory, Programmable
Capacity and Division
• Low Battery Indicator and Charging Status Indicator
digital indicator Features
• Stainless steel housing.
• LCD display with automatic backlight.
• Internal rechargeable battery.
• Stainless steel pan for daily use and cleaning.
• Approval type al 3.000 divisions OIML class III.
• EC approval.
• RS-232 output to connect our printer or a PC
Models
Models | Size(mm) | Capacity(kg) | Certificate |
SW7C3030 | 300*300 | 30 - 150 | CE & OIML & NTEP |
SW7C3040 | 300*400 | 30 - 150 | CE & OIML & NTEP |
SW7C4040 | 400*400 | 60 - 150 | CE & OIML & NTEP |
SW7C4050 | 400*500 | 60 - 300 | CE & OIML & NTEP |
SW7C5060 | 500*600 | 60 - 500 | CE & OIML & NTEP |
Tags: Weighing Scale
Specification
General | |
Accuracy | III |
Display | 40mm LCD display with LED backlit |
Display Resolution | 30,000/600,000 |
Speed of A/D Conversion | 10 times / second |
Operating Temperature | -10°C – 40°C |
Power | |
Adaptor | 100-240V – 12V1A |
Rechargeable Battery | 6V / 5Ah |
Estimated working time | 120 hours continuous use |
Charge Time | 3hrs |
Material | |
Pan Material | Stainless Steel |
Platform Material | Carbon steel |
Size and Weight | |
Product Weight | 14kg |
Packing Dimension | 860mm*450mm*180mm |
Other Info | |
Optional | RS-232 Interface |
