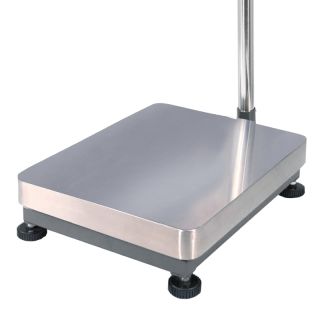

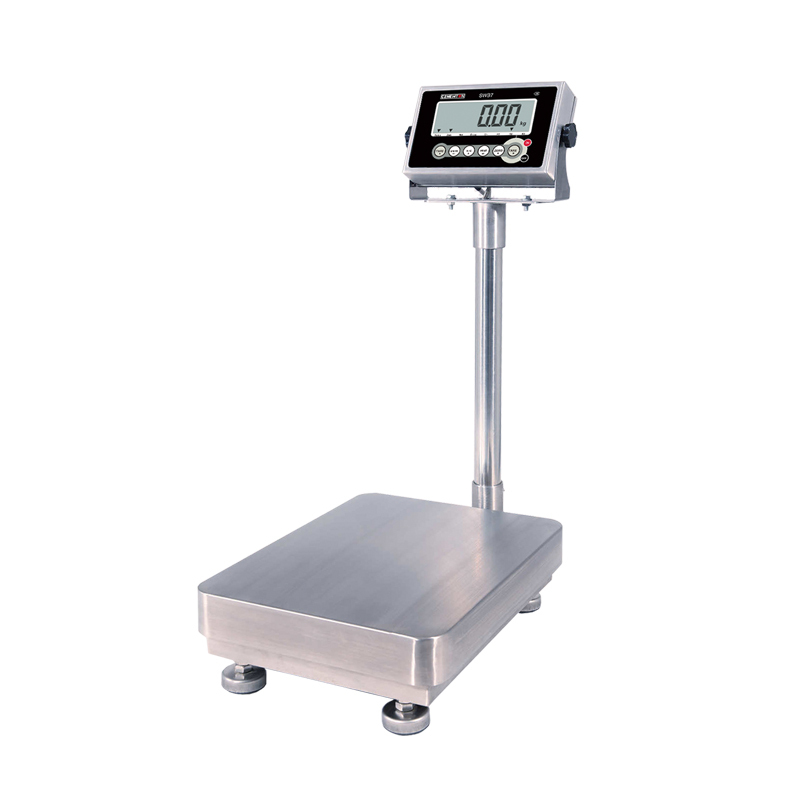

500KG IP66 Stainless Steel Indicator Platform Scale made in China

Brand: CZNEWTON

Product origin: Changzhou, Jiangsu, China

Application: Manufacturing

Model: SWB7

SWB7 is high precision OIML/NTEP waterproof stainless steel weighing indicator with extra-large LCD display. Platform Scale made in China, Platform Scale is NTEP approved Legal for Trade. It can work with 4 load cells with 350 ohm minimum resistance.

500KG IP66 Stainless Steel Indicator Platform Scale made in China

OIML/NTEP  scale Functions

• Function keys: Tare x 2, Units, Net/Gross, Print, Zero, On, Off

• Weighing Mode, Counting Function,  Checking Weight HI-OK-LO Function

• Multiple Weighing Units Available

• Power On Zero-Tracking, Auto-Calibration, Auto-Power Off mode, Digital Noise Filter, Full Tare, Accumulation Memory, Programmable

  Capacity and Division

• Low Battery Indicator and Charging Status Indicator

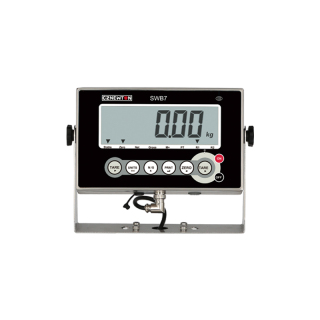

digital indicator Features

• Stainless steel housing.

• LCD display with automatic backlight.

• Internal rechargeable battery.

• Stainless steel pan for daily use and cleaning.

• Approval type al 3.000 divisions OIML class III.

• EC approval.

• RS-232 output to connect our printer or a PC


Models

Models

Size(mm)

Capacity(kg)

Certificate

SW7C3030

300*300

30 - 150

CE & OIML & NTEP

SW7C3040

300*400

30 - 150

CE & OIML & NTEP

SW7C4040

400*400

60 - 150

CE & OIML & NTEP

SW7C4050

400*500

60 - 300

CE & OIML & NTEP

SW7C5060

500*600

60 - 500

CE & OIML & NTEP

Tags: Weighing Scale


Specification

General

Accuracy

III

Display

40mm LCD display with LED backlit

Display Resolution

30,000/600,000

Speed of A/D Conversion

10 times / second

Operating Temperature

-10°C – 40°C

Power

Adaptor

100-240V – 12V1A

Rechargeable Battery

6V / 5Ah

Estimated working time

120 hours continuous use

Charge Time

3hrs

Material

Pan Material

Stainless Steel

Platform Material

Carbon steel

Size and Weight

Product Weight

14kg

Packing Dimension

860mm*450mm*180mm

Other Info

Optional

RS-232 Interface


FAQ
How long is your warranty terms?
Our warranty is 1 year....more
